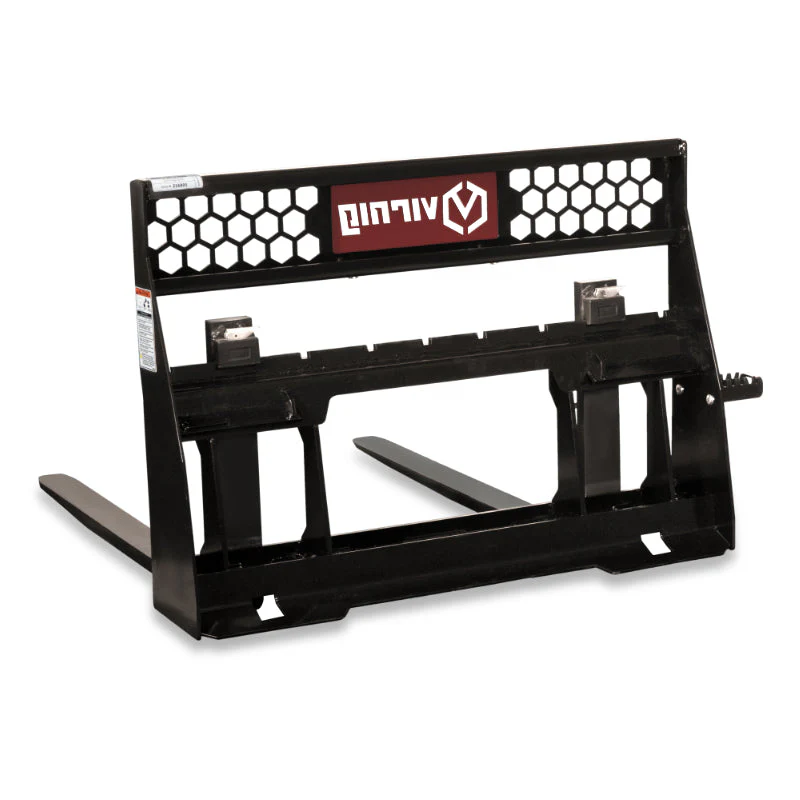

Virnig | v20 Wide Rail Pallet Fork for Mini Skid Steer
The Virnig v20 Wide Rail Pallet Fork is built for mini skid steers, delivering stable pallet handling with wider rails and durable forged tines for everyday tasks on tight job sites.
- Wide rail design: Wider rails deliver improved side-to-side stability for loads, helping prevent tipping during transport on compact loaders.
- Adjustable ITA Class II forged tines: High-strength forged tines that can be adjusted to fit different pallet configurations; choose between 36" (CWPF3622) or 42" (CWPF4222) lengths for better reach and engagement.
- BrickGuard protection: 3/16" BrickGuard plus a 3/4" beveled rail BrickGuard flush with the tines to stabilize loads and guard rails during handling.
- Bolt-on step: Included bolt-on step for safer, easier access to the mini skid steer during daily operation.
- Two model options: CWPF3622 and CWPF4222 share the same frame width and overall footprint, supporting consistent mounting on compatible mini skid steers.
- Dimensions and weight: Frame width 42.0", overall width w/step 47.0", overall height 30.1"; tine lengths 36.0" or 42.0", tine width 3.0", thickness 1.19"; weight 265 lb (CWPF3622) or 275 lb (CWPF4222).
- Capacity and loader guidance: Rated capacity 2,200 lb with a recommended loader capacity under 1,650 lb for safe operation.
- Tine space: Min 8.4" to max 37.6" of tine space to accommodate a range of pallet widths and configurations.
Whether you’re moving palletized materials in a confined workspace or transporting heavier loads across a warehouse floor, the Virnig v20 Wide Rail Pallet Fork provides dependable stability and robust performance. The wider rails reduce load sway, the forged ITA Class II tines offer lasting strength, and the brickguard flush design protects rails while enhancing load security. A bolt-on step adds convenience and safety when mounting, and the two tine-length options let you tailor reach to your pallets. With a 2,200 lb capacity and recommended loader capacity under 1,650 lb, this fork set is a practical, durable upgrade for your mini skid steer.
| MODELS | CWPF3622 | CWPF4222 |
| Width: Frame / Overall w/Step (Inches) | 42.0 / 47.0 | 42.0 / 47.0 |
| Overall Height (Inches) | 30.1 | 30.1 |
| Tine: Length/Width/Thickness (Inches) | 36.0 / 3.0 / 1.19 | 42.0 / 3.0 / 1.19 |
| Tine Space: Min/Max (Inches) | 8.4 / 37.6 | 8.4 / 37.6 |
| Approximate Weight (Pounds) | 265 | 275 |
| Capacity (Pounds) | 2200 | 2200 |
| Recommended Loader Capacity | Less than 1650 pounds |
Less than 1650 pounds
|
Original: $1,458.00
-65%$1,458.00
$510.30Product Information
